MATERIAL TYPE
The Material Type section allows administrators to categorize raw materials, finished goods, or components based on their characteristics and usage in manufacturing or inventory management. This interface helps organize materials systematically for better tracking and procurement processes.

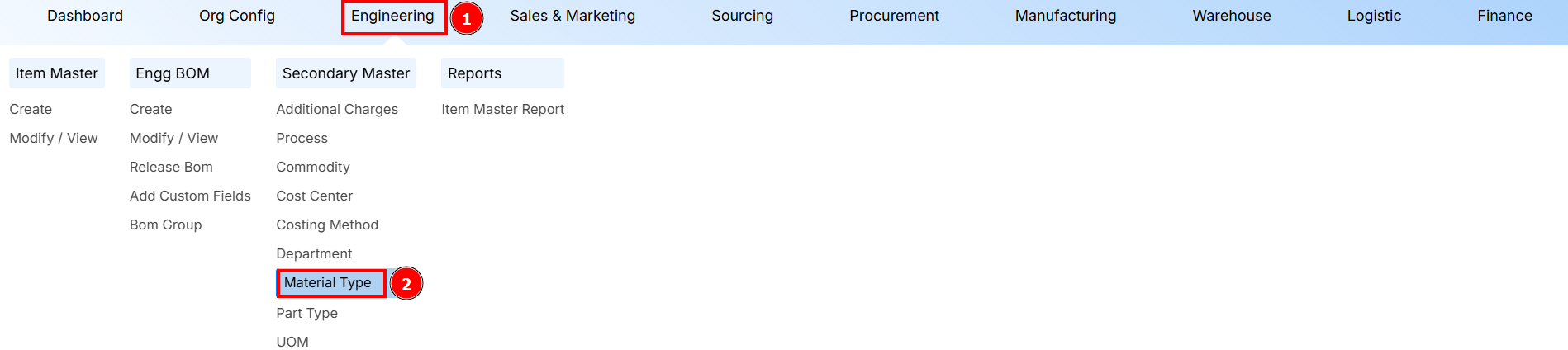

Navigation
Follow these steps to access the Material Type interface:
- Navigate to the Engineering module from the main menu
- Under the Secondary Master section, select Material Type
The Material Type interface will display all existing material types and provide options to create new entries.
Creating a New Material Type
Step 1: Initiate Material Type Creation

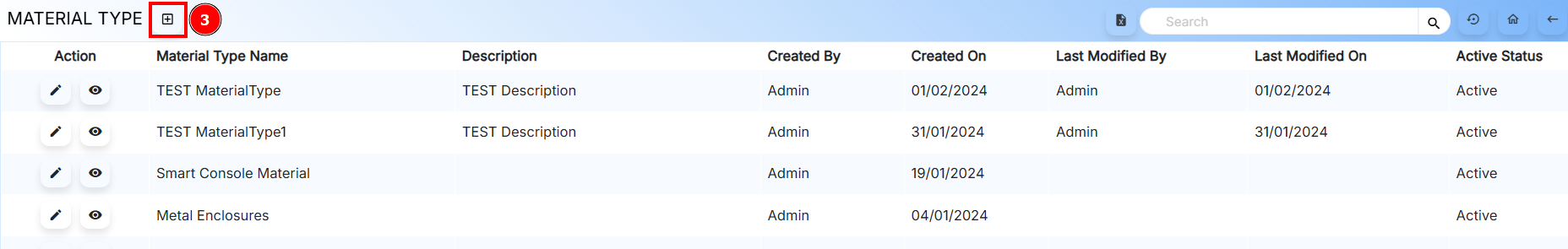

Click the Add button in the toolbar to begin creating a new material type.

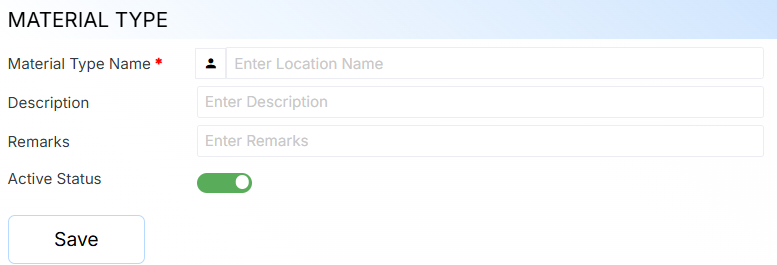

Step 2: Complete the Material Type Form
A material type configuration form will appear with the following fields:
Material Type Information
| Field | Description | Required |
|---|---|---|
| Material Type Name | Enter the name of the material type | ✓ Yes |
| Description | Provide a description of the material type | Optional |
| Remarks | Enter any relevant remarks or notes | Optional |
| Active Status | Toggle to enable/disable the material type (enabled by default) | ✓ Yes |
Step 3: Save the Material Type
After completing all required information, click the Save button to create the material type entry.
Warning
The Material Type Name field is mandatory.
Managing Existing Material Types

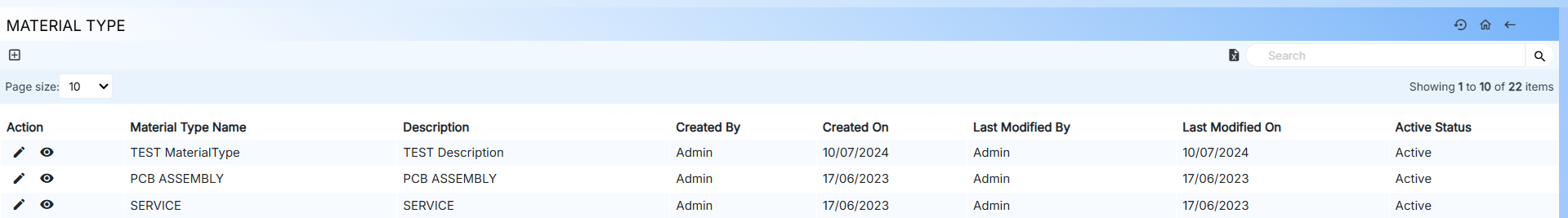

Material Type Listing View
Once created, all material types are displayed in the Material Type table.
Actions
Each material type in the listing supports the following actions:
Edit Material Type
Click the Pencil icon in the Actions column to modify material type details including name, description, or active status.
View Material Type
Click the Eye icon in the Actions column to view complete material type details in read-only mode.
Toolbar Features
The Material Type interface includes the following toolbar features:
| Icon | Feature | Description |
|---|---|---|
| ➕ Add | Add Record | Create a new material type entry |
| 📊 Export | Export to Excel | Download the material type data as an Excel spreadsheet |
| 🔍 Search | Search Input | Filter material types by entering keywords (searches across all columns) |
| 🔄 Refresh | Refresh Data | Reload the material type table to display the latest data |
| 🏠 Home | Navigate Home | Return to the application home page |
| ⬅️ Back | Go Back | Navigate to the previous page |
