MATERIAL REQUEST CREATE

A Material Request is a formal document used in manufacturing to request raw materials, components, or parts needed for production. It helps ensure that the required materials are available at the right time to avoid delays in the manufacturing process.

The Material Request creation process allows users to specify project details and list all required items for production. This ensures accurate tracking and timely procurement of materials needed for manufacturing.

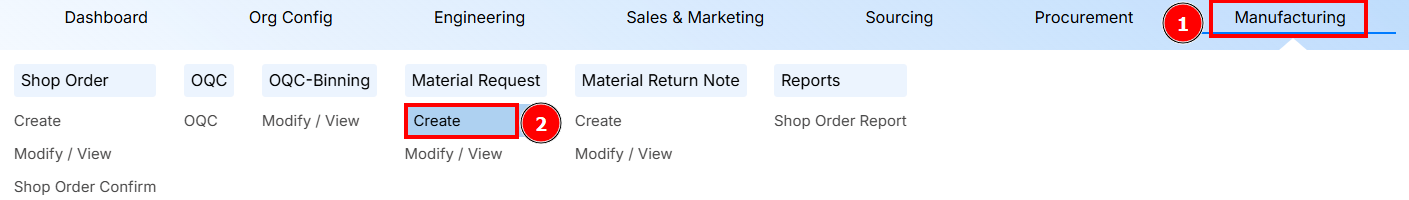

  1. Click on "Manufacturing".
  2. Click on "Create" under "Material Request". STEPS TO MODIFY/VIEW

A page will be displayed where users can create Material Request.

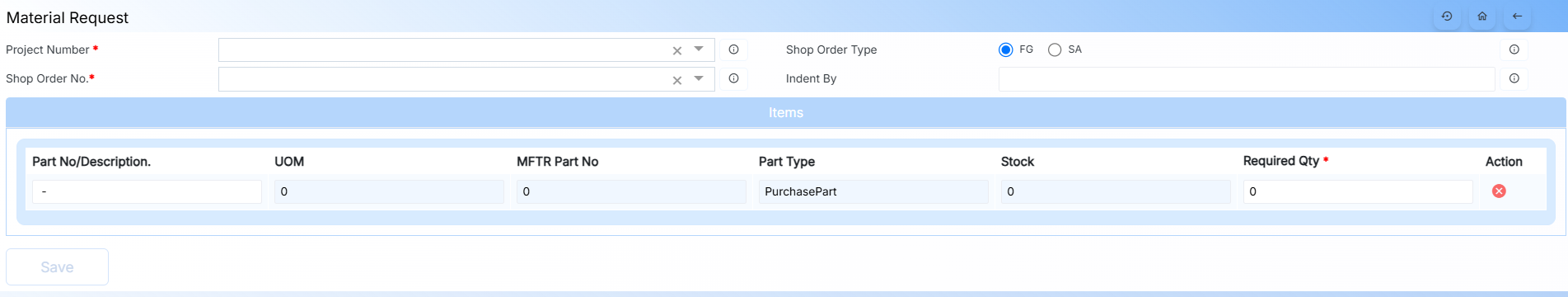

Material Request Form

FORM

  • Project Number: Enter the project number. Or can select the Project number from the dropdown Menu.
  • Shop Order: (Radio Buttons): Select the shop order type:
    • FG: Represents "Finished Goods".
    • SA: Represents "Sub-Assembly".
  • Shop Order No.: Enter the shop order number.
  • Indent By: Enter the name or identifier of the person or department initiating the indent.

Items

This table allows you to specify the parts required for your material request. Each row represents a single part.

  • Part No/Description.: Enter the part number and a brief description of the part.
  • UOM: Enter the unit of measure (e.g., each, meter, kilogram).
  • MFTR Part No: Enter the manufacturer's part number.
  • Part Type: Specify the type of part (e.g., raw material, component).
  • Stock: Displays the currently available stock quantity for the part.
  • Required Qty: Enter the quantity of this part required.

Action: Click the delete icon to remove a row from the table.

Save Button: Click to submit the material request form.

Icons

ICONS * Refresh: Click to refresh the data displayed in the table. * Home Icon: Navigates to the home or main page of the application. * Back Icon: Navigates back to the previous page.
